TMC-40E ELECTRONIC LIQUID
TMC-40E Electronic Liquid is a non-conductive fluorinated heat transfer fluid engineered with chemistry and performance characteristics comparable to fluids historically used as a FC-40 replacement. It provides excellent thermal and chemical stability, making it suitable for demanding electronic cooling environments.
Size :
Jug (11lb/5kg/0.73gal/2.75L)

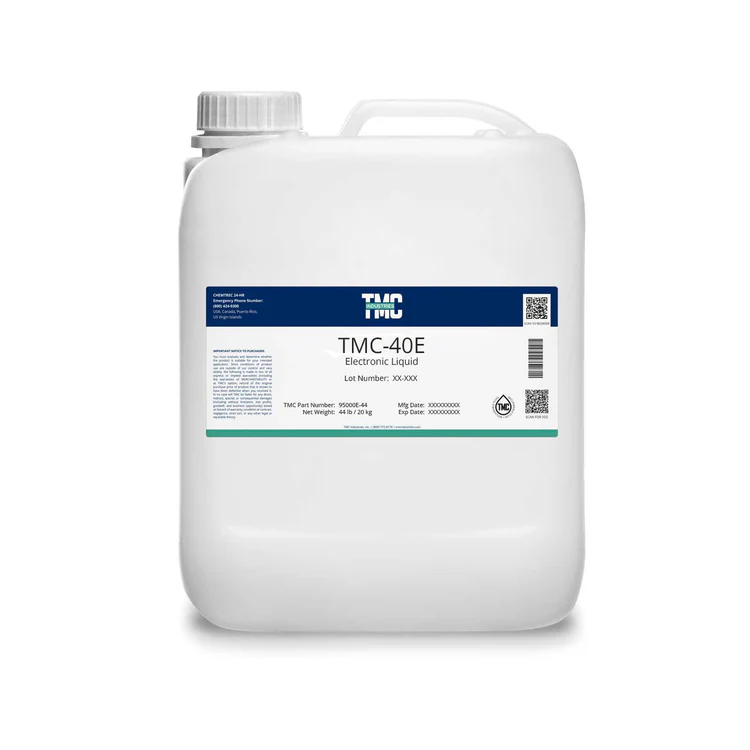

Pail (44lb/20kg/2.90gal/10.99L)

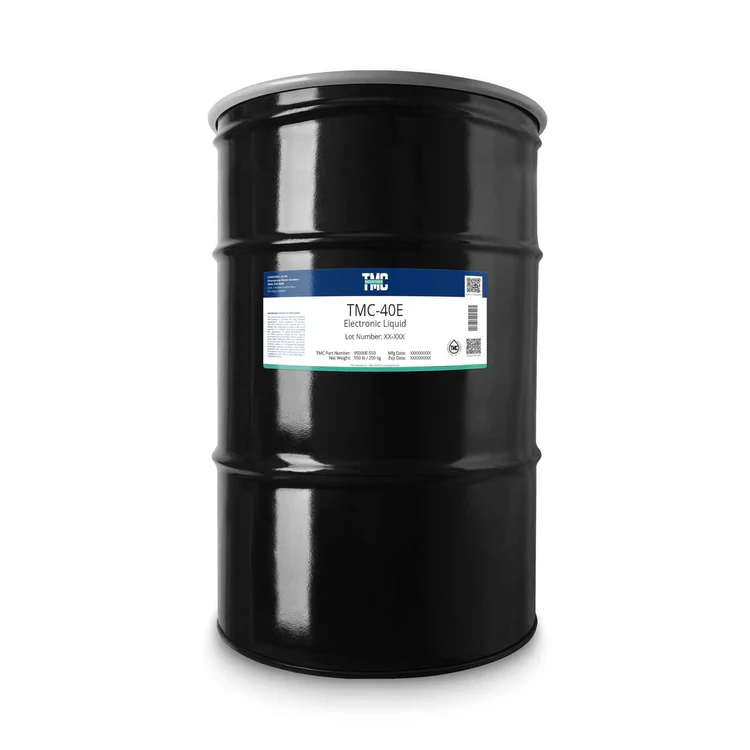

Drum (551lb/250kg/36.3gal/137.4L)
Sample (2.2lb/1kg/0.15gal/0.55L)
Brand & Series : TMC-40E
Trade Description:Professional Use - Heat Transfer Fluid used in Manufacturing
Country of Origin: China
OVERVIEW
TMC-40E is designed for single-phase heat transfer applications across electronics and semiconductor manufacturing, including test systems, CVD processes, and TFT production where consistent dielectric performance and reliable thermal management are essential.
APPLICATIONS
Dielectric Bath
Electronic Testing
Gross Leak Testing
Heat Transfer
Semiconductor Cooling
Thermal Shock Testing
PROPERTIES & COMPARISON
| Property | FC-40 | TMC‑40E |
|---|---|---|
| Boiling Point | 165 °C; operating range –57 °C to 165 °C | 165 °C |
| Pour/Freezing Point | –57 °C | –57 °C |
| Density | 1855 kg/m³ | Same |
| Kinematic Viscosity (25 °C) | 2.2 cSt (abs: 4.1 cP) | Same |
| Dielectric Constant | 1.9 @ 1 kHz | Same |
| Dielectric Strength | 46 kV (0.1" gap) | >40 kV |
| Thermal Conductivity (25 °C) | 0.065 W/m·K | Same |
| Latent Heat of Vaporization | 69 J/g | Same |
| Surface Tension | 16 dynes/cm | — |
| Water Solubility | <5 ppmw | — |
| GWP / ODP | Zero ODP; high GWP | Same |
| Materials Compatibility | Excellent with most metals/plastics | Same |
| Toxicity & Safety | Low toxicity, nonflammable | Similar |
