OPTEON SF79

Opteon™ SF79 is commonly used as a replacement / alternative for 3M™ Novec™ 71DE, offering comparable cleaning performance for precision electronics cleaning and vapor degreasing applications.

Size :

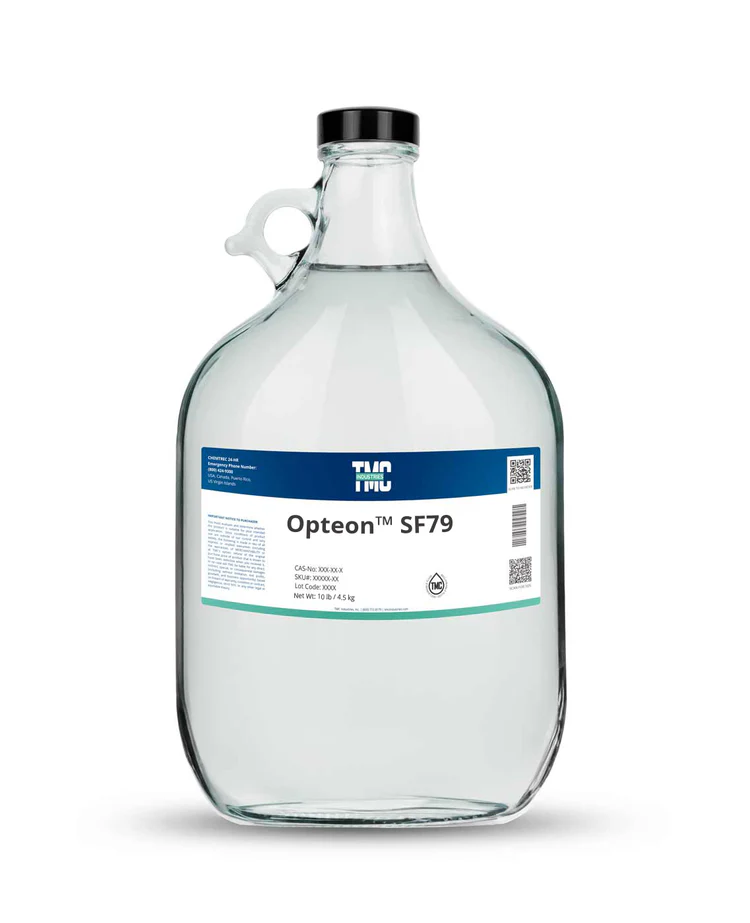

1 Gallon Jug (10lb/4.5kg)

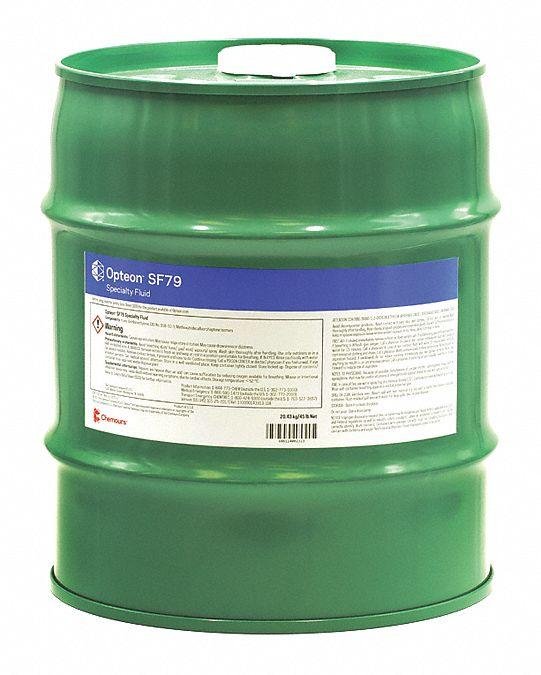

5 Gallon Pail (45lb/20kg)

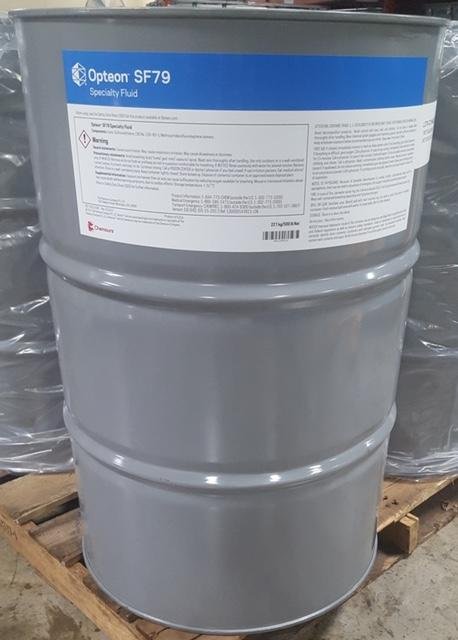

55 Gallon Drum (500lb/227kg)

Sample (2.2lb/1kg)

Brand & Series : Opteon SF79

Trade Description: Precision Cleaning Fluid

Country of Origin: United States

OVERVIEW

Opteon™ SF79 Precision Cleaning Fluid

TMC-40 Electronic Liquid is a non-conductive, thermally and chemically stable fluid ideal for single phase heat transfer fluid applications, especially in the electronics and semiconductor industry for testers, CVD and TFT manufacturing. TMC-40 is a clear, colorless, non-conductive, non-flammable, residue free, thermally and chemically stable liquid ideal for use in many heat transfer fluid applications.  Its wide liquid range (-57 to 165 deg C) and compatibility makes it well suited for a variety of electronic single and two phase heat transfer applications, including in the semiconductor market for etchers, ion implanters, testers, CVD and TFT manufacturing. Because TMC-40 has a narrow boiling range, its composition will change little with time, this keeps fluid loss to a minimum and insures consistent transport properties.

APPLICATIONS

Precision cleaning of electronic components

Vapor degreasing systems

PCB flux residue removal

Semiconductor component cleaning

Precision metal parts cleaning

Optical and connector cleaning

PROPERTIES & COMPARISON

Property Novec™ 71DE Opteon™ SF79
Composition 90% Novec 7100 + 10% Ethanol Proprietary fluorinated blend
Boiling Point ~61 °C ~60–65 °C
Freezing Point < −50 °C < −50 °C
Density (25 °C) ~1520 kg/m³ ~1500–1550 kg/m³
Kinematic Viscosity ~0.4–0.6 cSt ~0.5–0.7 cSt
Dielectric Constant ~7 ~6–7
Surface Tension ~13–15 dynes/cm ~14–16 dynes/cm
Evaporation Rate Fast Fast
Flammability Nonflammable Nonflammable
GWP / ODP Low GWP / Zero ODP Low GWP / Zero ODP
Materials Compatibility Excellent Excellent
Typical Use Precision cleaning, vapor degreasing Cleaning and defluxing applications
