AD-7100 is a fluorinated engineered fluid based on HFE-7100 chemistry (methoxy-nonafluorobutane), designed for advanced industrial applications requiring precision cleaning, fast drying, and reliable thermal performance.
The fluid offers comparable physical and chemical properties to Novec™ 7100, including low viscosity, low surface tension, controlled evaporation rate, and excellent dielectric strength. These characteristics make it ideal for applications where electrical insulation, residue-free cleaning, and thermal stability are critical.
AD-7100 provides strong solvency for removing oils, grease, flux residues, and particulates from sensitive electronic components and precision assemblies. Its low surface tension enables deep penetration into tight geometries and complex parts, ensuring efficient and uniform cleaning.
The fluid is widely used in vapor degreasing systems, immersion cleaning processes, and heat transfer applications across industries such as electronics manufacturing, semiconductor processing, aerospace, and precision engineering.
With zero ozone depletion potential (ODP), low toxicity, and non-flammable properties, AD-7100 meets modern environmental and safety standards, making it suitable for global industrial applications.

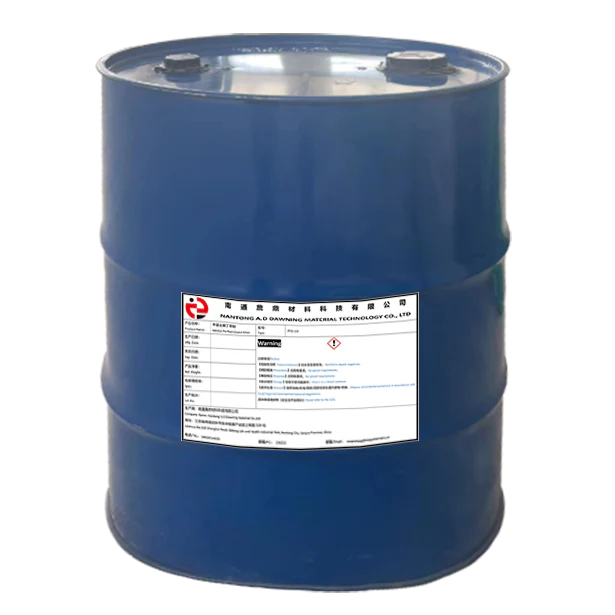

AD-7100 is supplied for OEM and industrial use, supporting both small-scale applications and large-volume production environments.
| Property | Novec™ 7100 | AD-7100 |
|---|---|---|
| Chemical Name | Methoxy-nonafluorobutane (HFE-7100) | Same (HFE-7100 based) |
| Chemical Formula | C4F9OCH3 | Similar |
| Boiling Point | 61 °C | 61–62 °C |
| Freezing Point | −135 °C | ~−135 °C |
| Molecular Weight | 250 g/mol | ~250 g/mol |
| Density (25 °C) | 1.52 g/cm³ | 1.52–1.53 g/cm³ |
| Kinematic Viscosity (25 °C) | ~0.38 cSt | ~0.38–0.40 cSt |
| Surface Tension | ~13.6 dynes/cm | ~13–14 dynes/cm |
| Vapor Pressure (25 °C) | ~25 kPa | ~25–26 kPa |
| Dielectric Strength | >35–40 kV | Similar |
| Dielectric Constant | ~6.3 @ 1 kHz | ~6.2–6.4 |
| Heat of Vaporization | ~112 kJ/kg | ~110–113 kJ/kg |
| GWP (100 yr) | ~320 | Same |
| ODP | Zero | Zero |
| Flammability | Nonflammable | Nonflammable |
| Toxicity / Safety | Low toxicity | Low, safe for industrial use |
| Material Compatibility | Excellent | Excellent |
| Applications | Cleaning, heat transfer, degreasing | Same |
